H8-4 Woolkom Brand Mirror LED digital buzzer parking sensor system

WHY CHOOSE IT(FEATURES)

✓ With 4 sensors and led digital display

✓ Prevent future dangerous and costly collisions

✓ Central AV controller box for easy connection

✓ Anti-freeze and rain proof

✓ High quality, easy installation and operation

✓ Help to increase safety for passengers, pedestrians and your family

✓ With a drill head, convenient to drill hole on the bumper of the car

PERFORMANCE SPECIFICATION

✓ Automatically works when reversing

✓ Show distance by digital display

✓ Detect distance:0.3~2.5M

✓ Embedded detector sensors (which require installation into your rear bumper)

✓ High-tech processing, High-quality detector sensor, Beautiful line type figure

✓ Easy installation. With a English User manual

✓ Wireless parking sensor, no need to run a wire from the front of the vehicle to the rear

✓ 4-sensor, 6-sensor, 8-sensor, 3-sensor, even 2-sensor model is optional for you

✓ Factory certification: ISO9001:2008

✓ All Woolkom products with CE Certificate Approved

TECHNICAL SPECIFICATION

✓ Rated voltage:12V

✓ Operating voltage: 10.5 ~ 16V DC

✓ Rated current: 100mA - 300mA

✓ Detection distance: 0.3 ~ 2.5m

✓ Ultrasonic frequency: 40KHz

✓ Working temperature of control box: -30 - 80℃ Celsius degree

✓ Main control box size: 106 * 60 * 21mm

✓ Main control box weight: 60g

✓ Sensor Installation Height: 50-60CM off the ground.

✓ Maxim Power Consumption: 2W

Type

LED buzzer parking Sensor

Warming Sound

Bi-Bi-Bi sound

Brand

Woolkom/Neutral/OEM

Sensor colors

Green, Yellow, Silver…

Sensor

2,3,4,6,8 sensor is option

Detect Distance

0.3~2.5 M

Application

All Universal Car

Alarm Distance

0.3~1.0 M

Packaging

Woolkom/Neutral/OEM

Qty of Carton

20pcs/30pcs/40/CTN

ALARM MODE

Distance

Judgment

Sound

No sound

≥1.6M

Safe

Display Color

Black/Colorful

1.5-1.1M

Safe

Bi.....Bi.....Bi

Green blue

1.0-0.6M

Warning

Bi...Bi...Bi

Yellow green blue

0.5-0.4M

Dangerous

Bi..Bi

Red yellow green blue

0.3-0M

Dangerous

Bi.....

Red yellow green blue

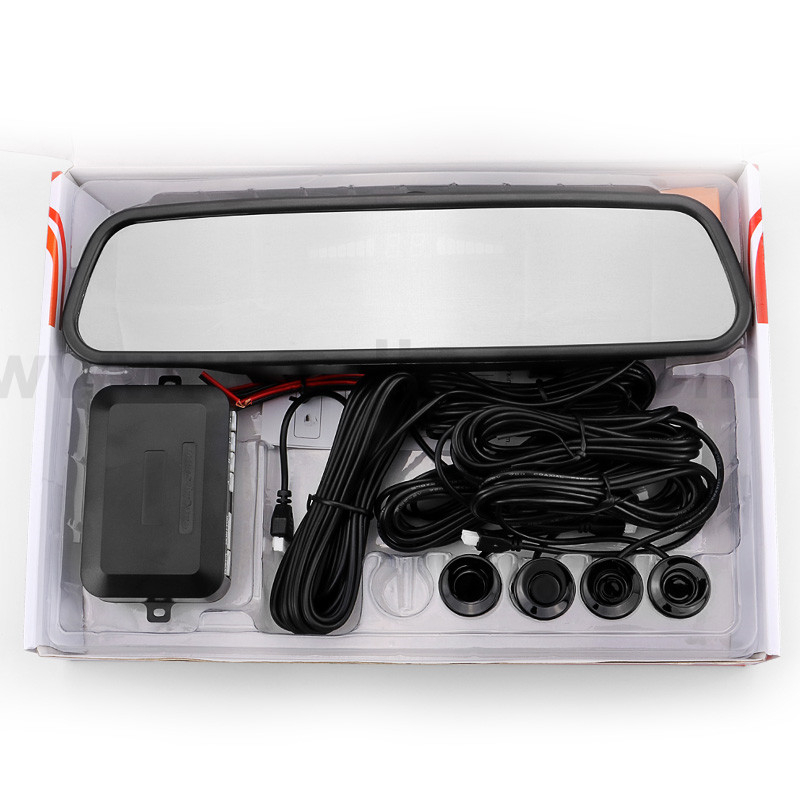

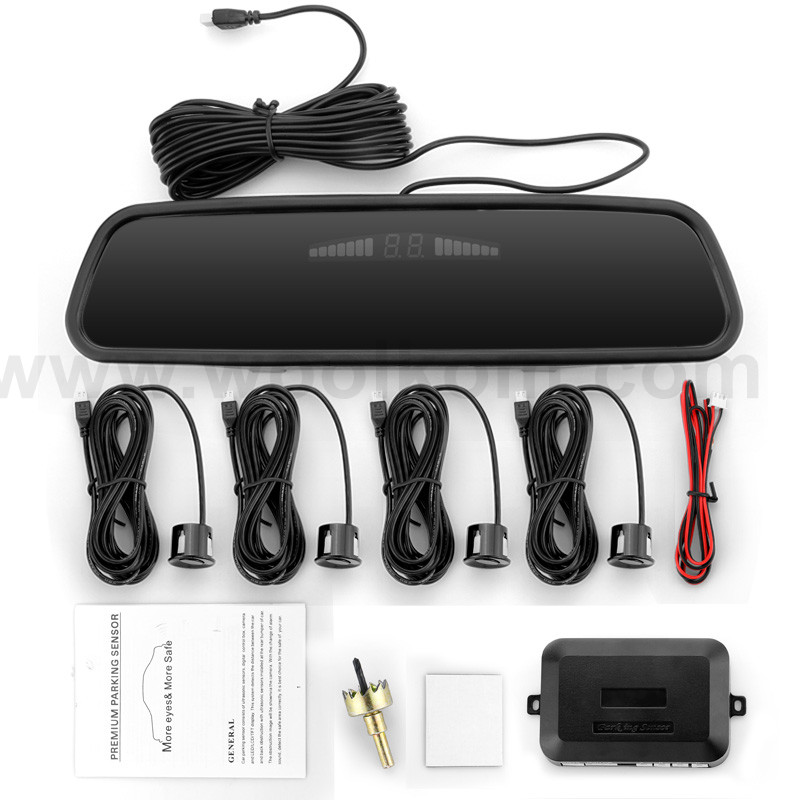

PACKAGE INCLUDING

✓ 1 * Woolkom Brand Main Control Box

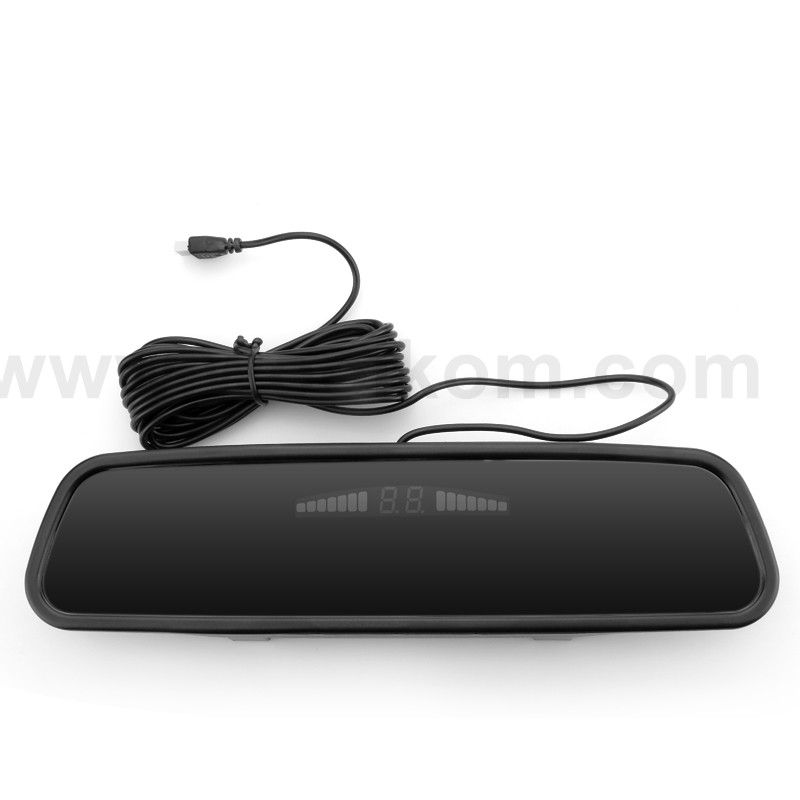

✓ 1 * Mirror LED Display Indicator

✓ 4 * Parking Sensors with 2.5M cable

✓ 1 * Sensor Hole Drill

✓ 1 * Power Cable

OPTIONAL

✓ Sensor With or Without Waterproof connector is OPTIONAL
